Please download this PDF file of the assembly manual - if you have purchased the flat pack - or if you want more information about the flat pack.

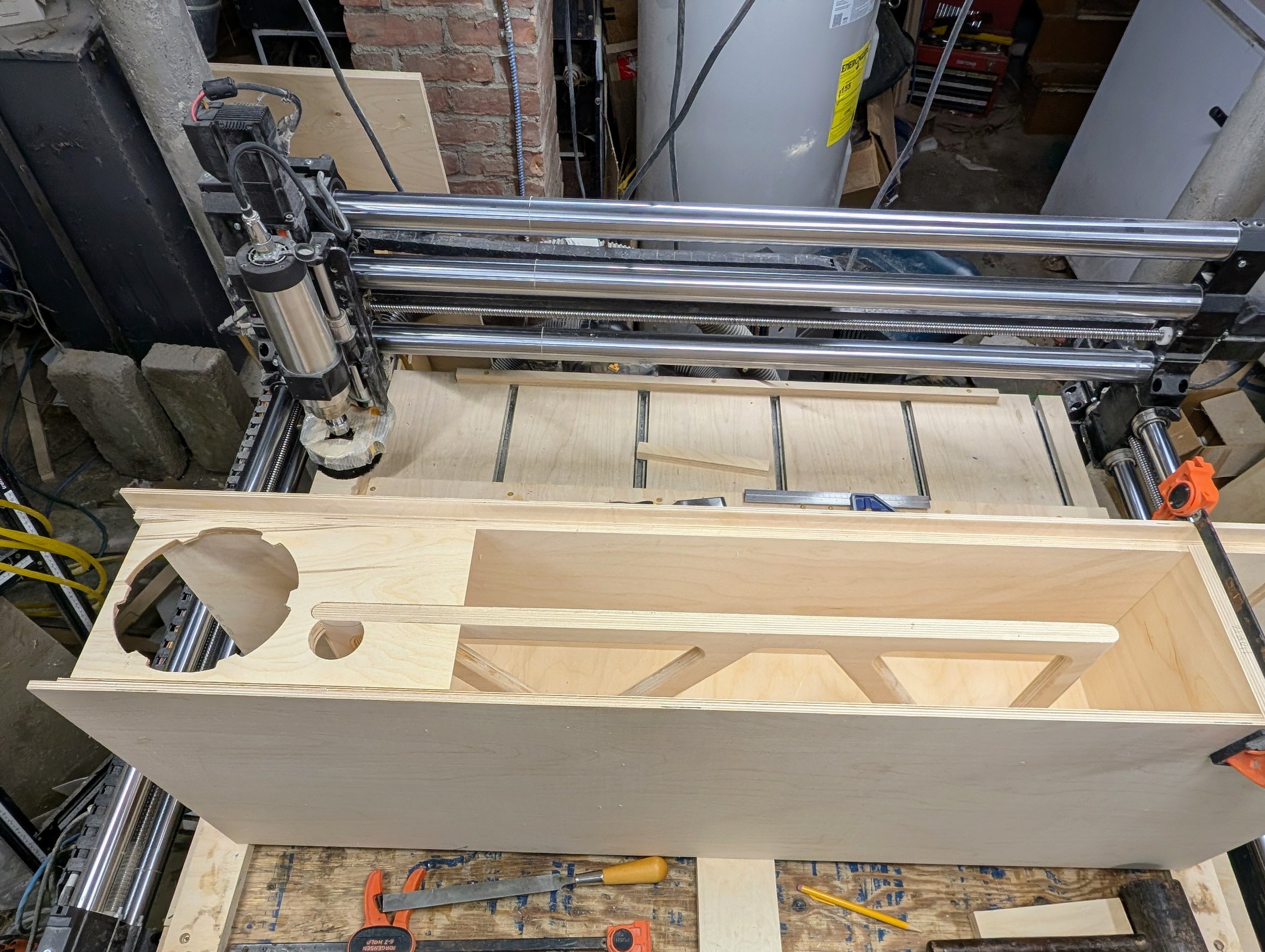

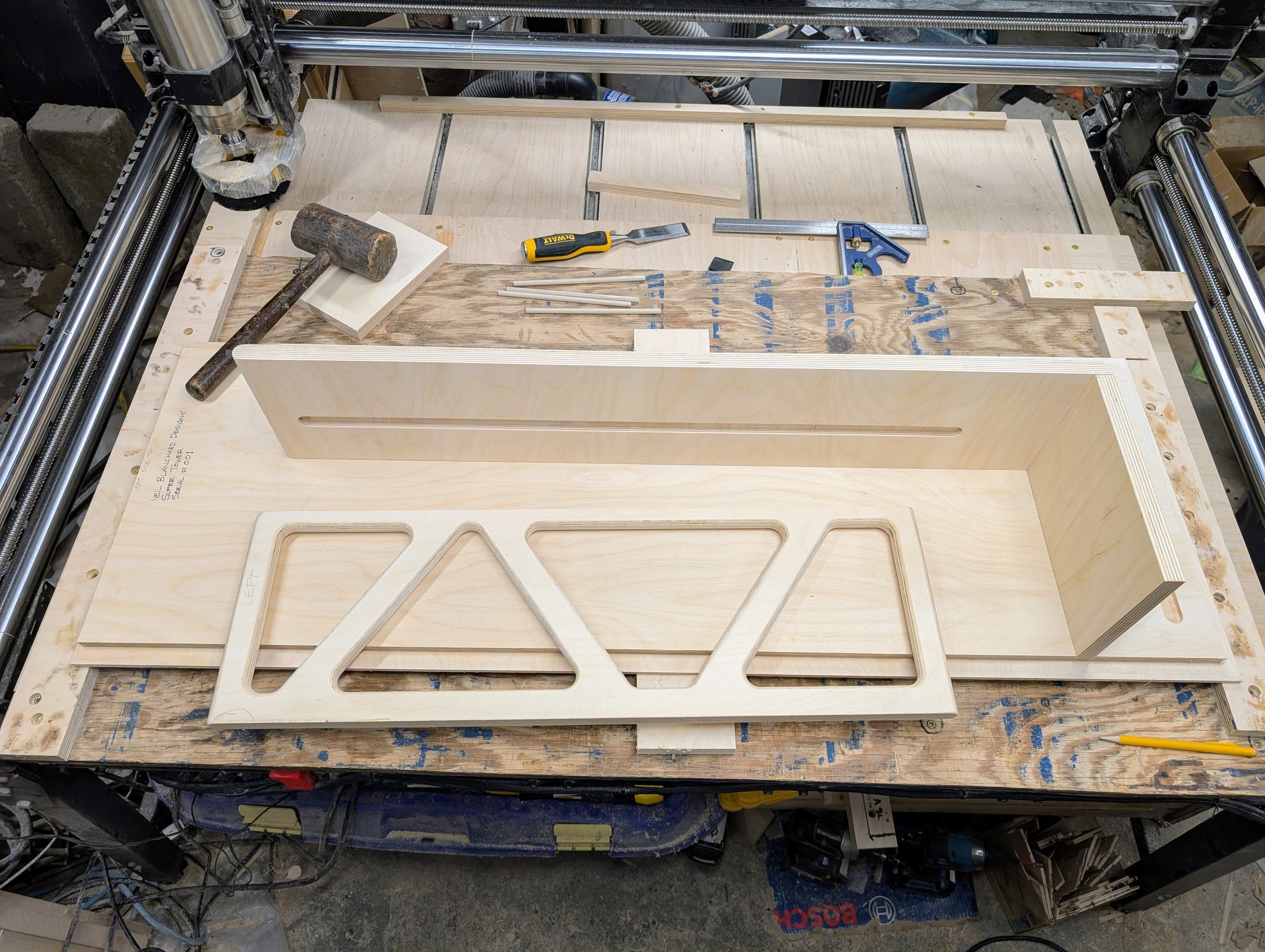

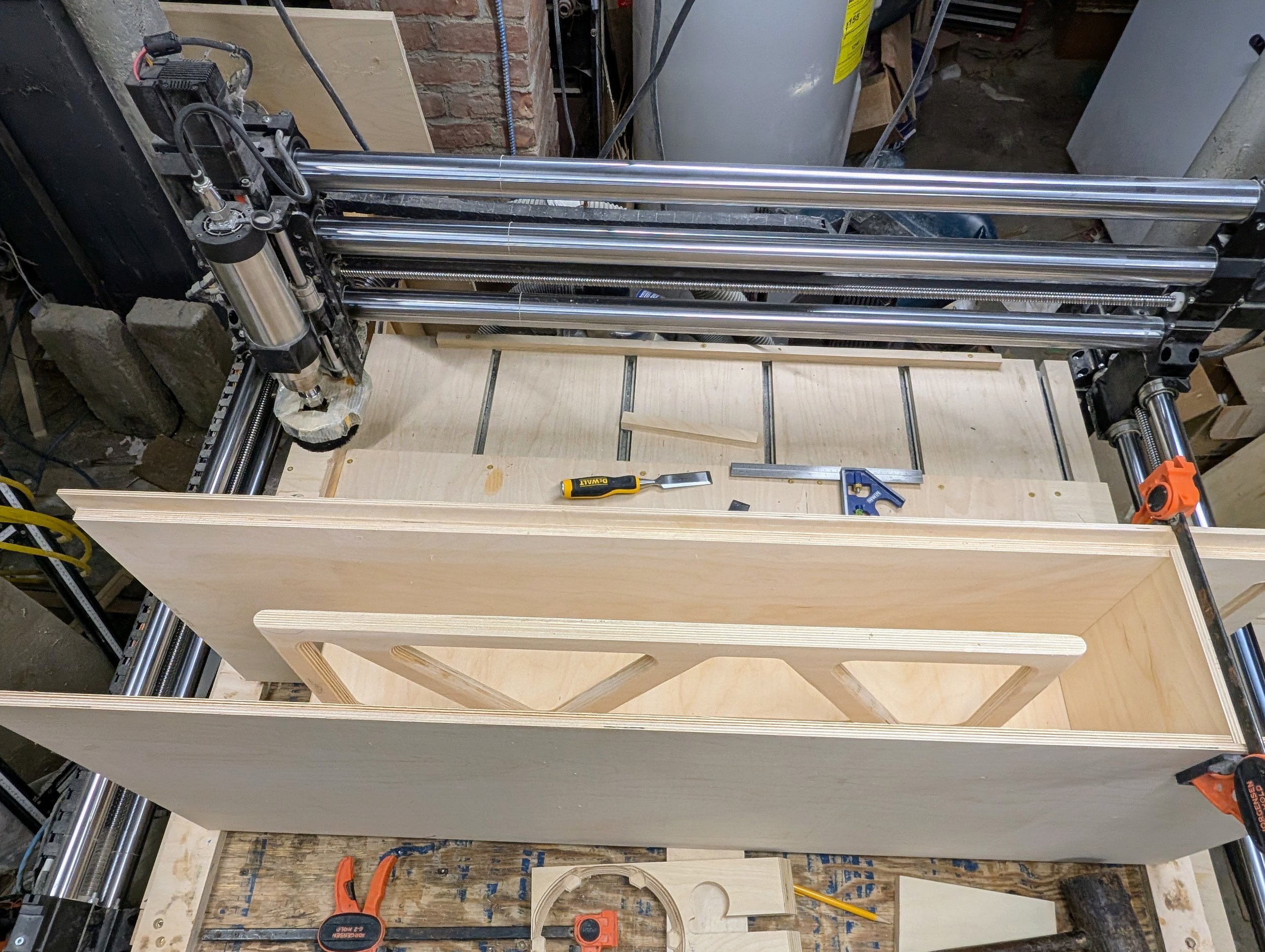

Made with 18mm Baltic birch, cut on a CNC machine - this is for the Super Tower. These are sold in pairs - price is for a mirrored pair.

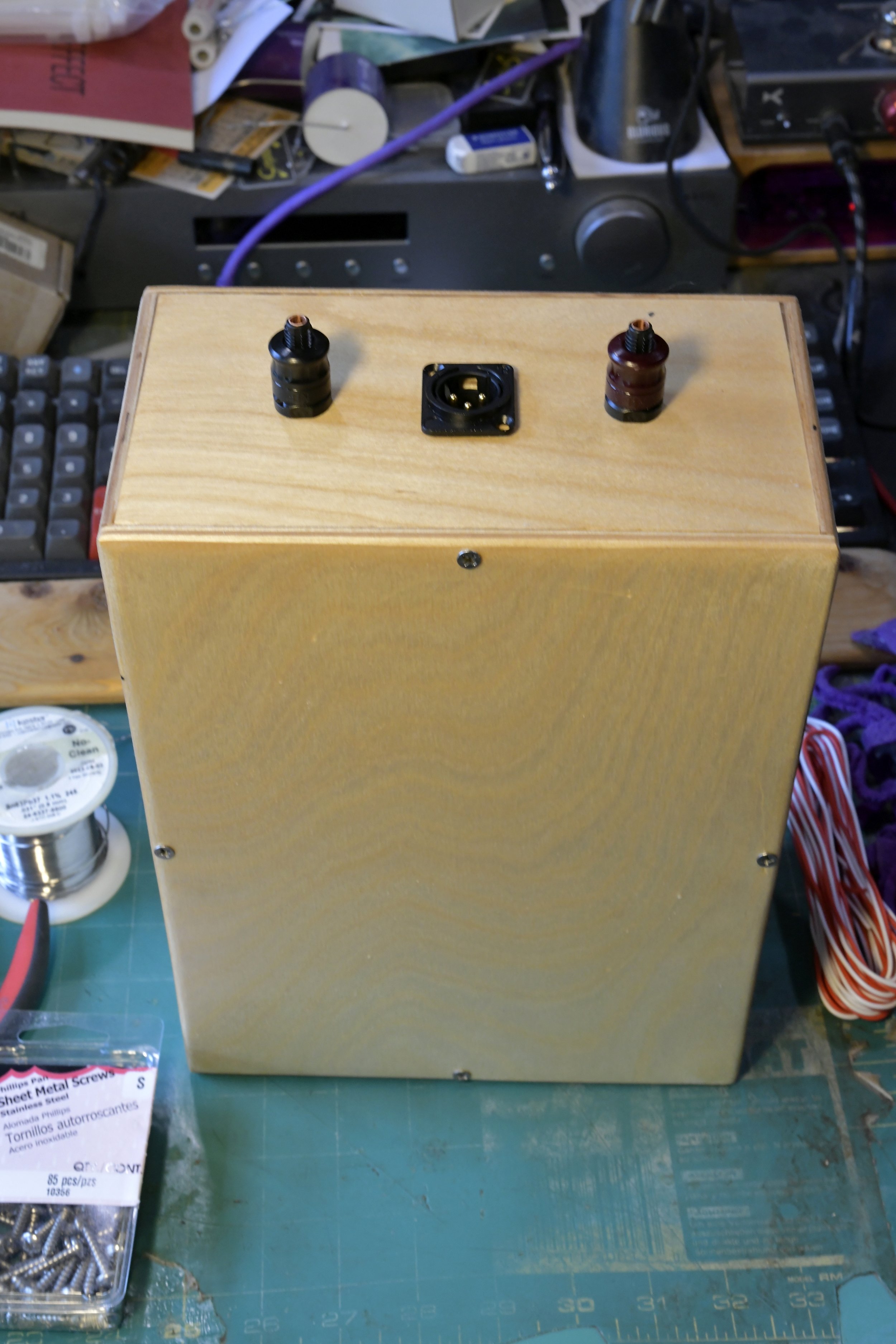

There are separate external crossover enclosure boxes (one for each speaker). Each box requires 5 connectors/binding posts, and each speaker requires 3 connectors/binding posts. Or an XLR cable can be used as the “umbilical” from the XO box to the speaker cabinets. For the 5 binding posts, the XO box front will have 5 dimples to locate the binding posts, and the access panels will have 3 dimples. For the XLR & 2 binding posts, the XO box top panel will have 3 dimples to locate the XLR jack and binding posts, and the access panels will have 1 dimple for the XLR jack. If you want to have the XLR jack holes cut on the CNC, please email us after you order the flat pack - NeilBlanchardDesigns@gmail.com Each box is 8 1/4”W x 10 3/4”H x 4 1/2” (209mm x 272mm x 115mm) not including your connectors/binding posts. The benefit of an external crossover - especially with the “better” or “best” crossover parts - is the bass response of the transmission line cabinet is able to fully meet its design potential. With the external crossover box, the speaker cabinet back panel is one piece, with a small access panel that is rabbeted on all 4 edges, and has the corresponding 3 connectors/binding posts, or XLR jack installed in it.
It includes all the wood parts to build a pair cabinets, a 1/4” plywood crossover board, and a PDF assembly manual (see the download link below). The external crossover box is 18mm Baltic birch rabbeted pieces. It does not include drivers, crossover parts, cables, binding posts - or any other hardware. You will need to purchase the Super Tower Mass Loaded Transmission Line Speaker Build Manual to complete the speakers.
Flat packs will be cut after ordering, and shipped via UPS. Shipping cost will be calculated for your zip code. Sales and shipping are available ONLY in the USA.
Surface options - if you are planning on having the Baltic birch be the finish surface, and you want it to be smooth as possible - you can opt for this. We will inspect each panel for any surface texture flaws that would not smooth after sanding. If you are going to veneer or paint etc, and can fill in occasional random surface defects, then you can opt for this.
PLEASE NOTE - when you place an order for a flat pack, we will cut it as quickly as possible, and do a preliminary dry fitting, and then box it and ship it. If we need to order more Baltic birch, when you order, that will increase the time until we can ship it - so the lead time may be up to 5-6 weeks for your flat pack to be shipped. We will be at Capital Audiofest which is Nov 13-15, plus 3 days of travel and setup for the show. After CAF, the lead time should be shorter.
Thank you for your patience & understanding!
There is a link at the bottom of this page to download the assembly manual for the flat pack - please download it if you purchase the flat pack - or if you are interested in more information about it.
